Disassembly test report:10W 2USB wall charger [Model:IET002050]

Table of Contents
    Add a header to begin generating the table of contents
    Scroll to Top

    Guangzhou IDEAL Electronic Technology Co., Ltd. was established in 2010. It is a high-tech enterprise focusing on R&D, design, production and sales of power products such as mobile phone chargers, car chargers, and smart USB chargers. The 10W 2USB charger introduced today is one of IDEAL’s most-selling products so far. The charger is equipped with two 2A ports, both of which support 10W charging, which can meet the daily charging needs of new and old devices, and can also charge two devices at the same time without waiting. Let’s disassemble it in detail to see how the materials are used.

    1.The appearance of the product.

    Image 25

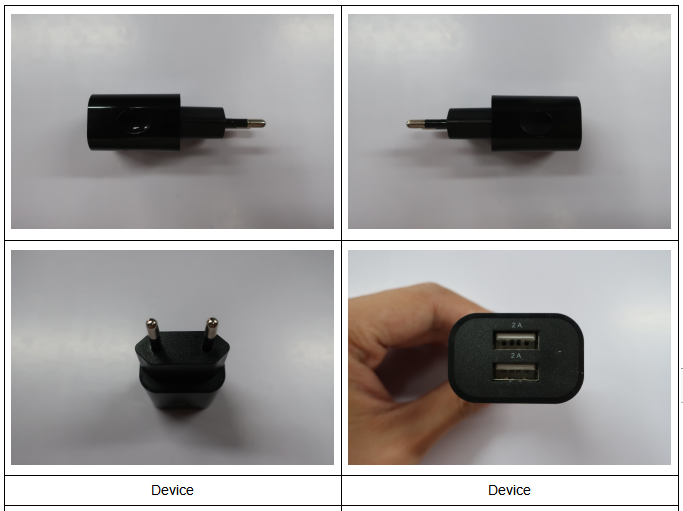

    The intaglio design on the side makes it more convenient to use.

    Image 26

    The input end adopts the typical long pin design of European version, which makes the insertion more stable.

    The top surface is equipped with 2USB 2A interface, with white rubber core

    2.Specific parameters:

    Image 32

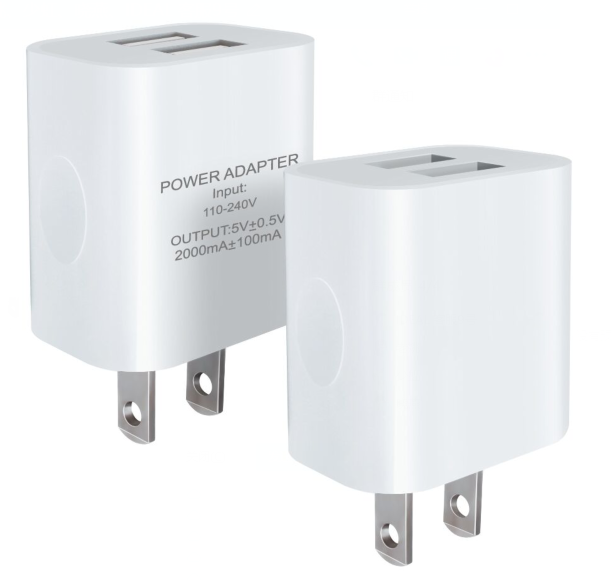

    POWER ADAPTER
    Model: IET002050
    Input:110-240V
    OUTPUT:5V 2000mA

    Strictly comply with CE standard production, can cooperate with other certification.
    Custom printed content is accepted

    3.Volume and weight parameters:

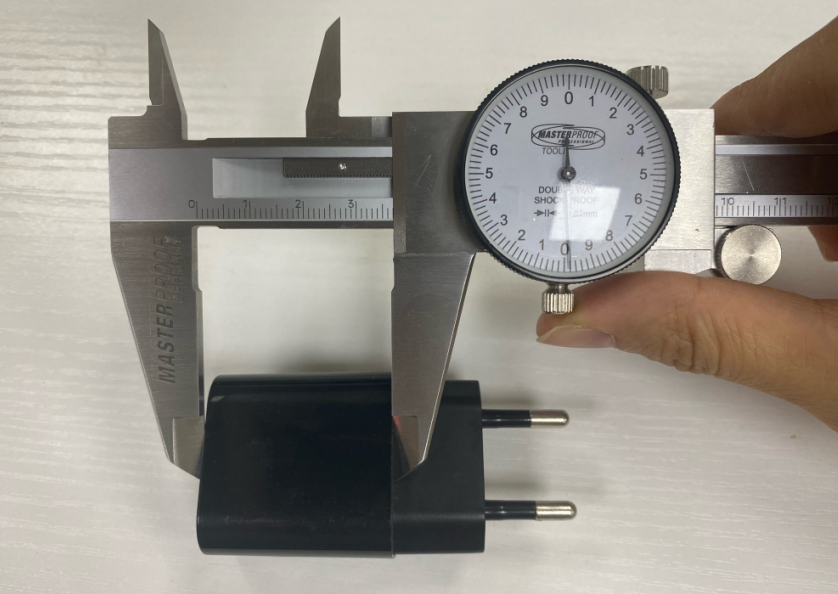

    Image 28

    Charger length :37MM

    Image 29

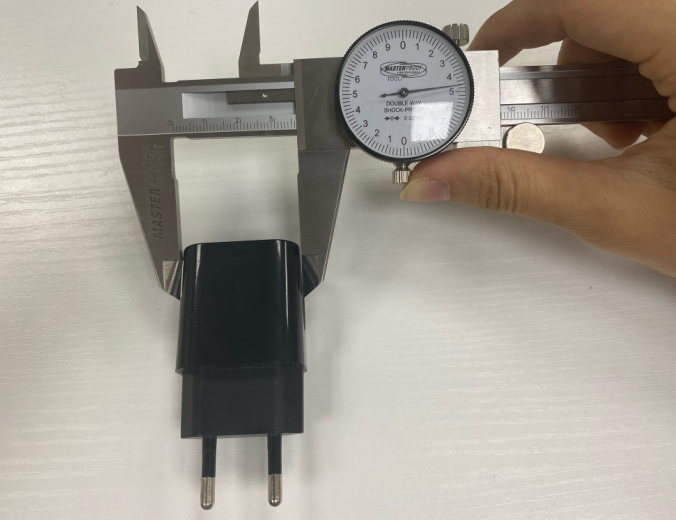

    Charger width:36.46 MM

    Image 30

    Charger thickness:24.43MM

    The three-dimensional parameters of the charger are 37*36.46*24.43mm, the volume of the charger is about 32.96cm³, and the maximum output is 10W, and the power density is about 0.30W/cm³.

    Image 27

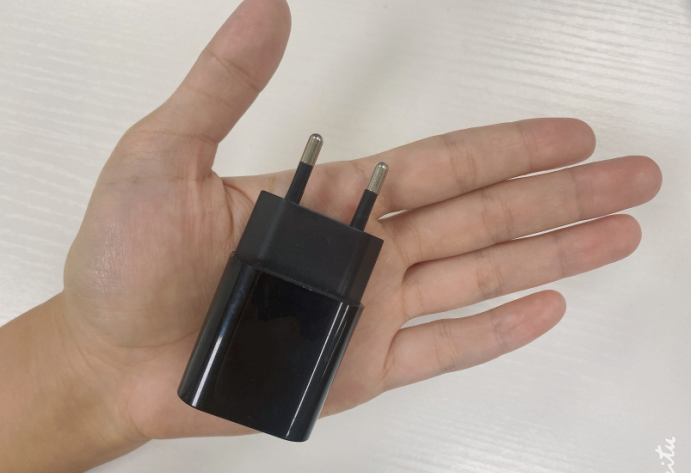

    The intuitive feeling of holding it in your hand.

    Image 31

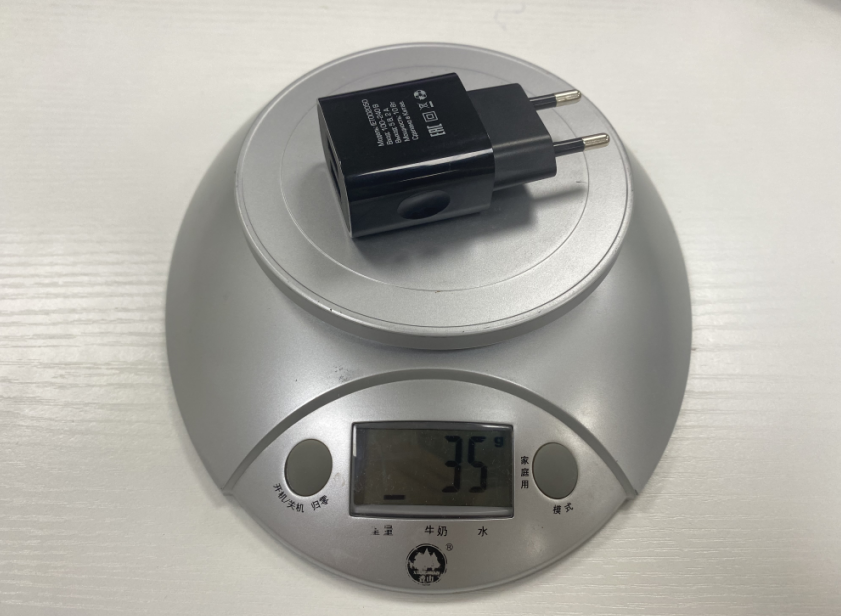

    Product net weight 35G

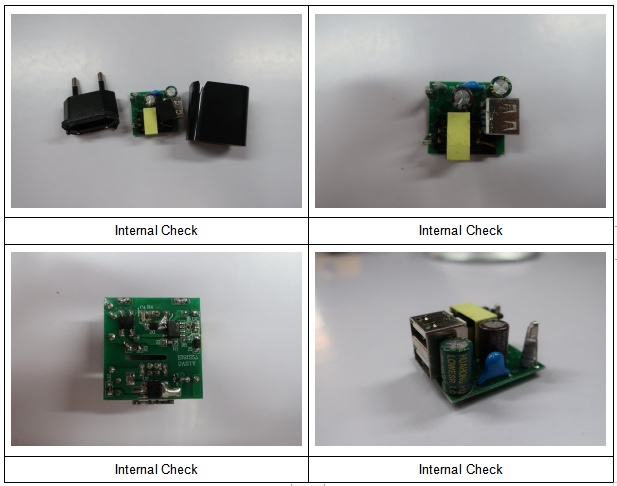

    4.Display of internal structure

    Image 34

    5.Compatibility and functional testing

    Image 33

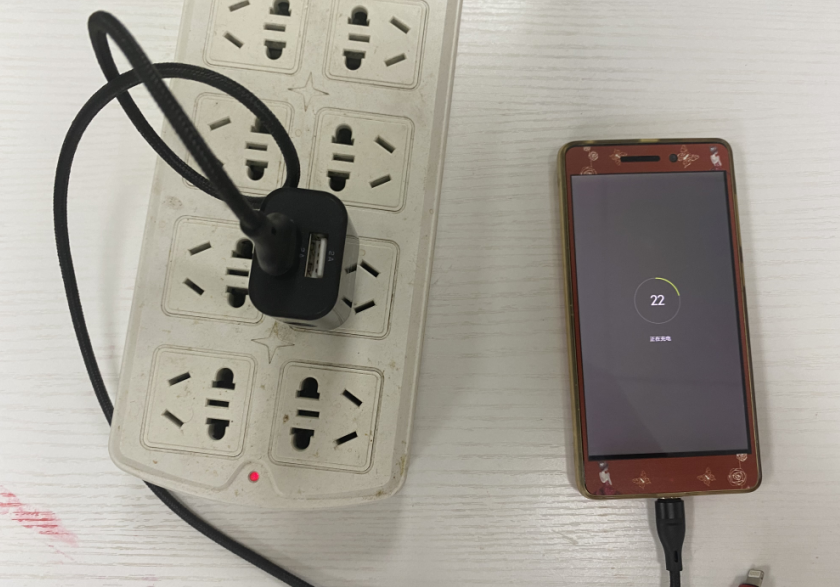

    Real machine charging test

    Image 35

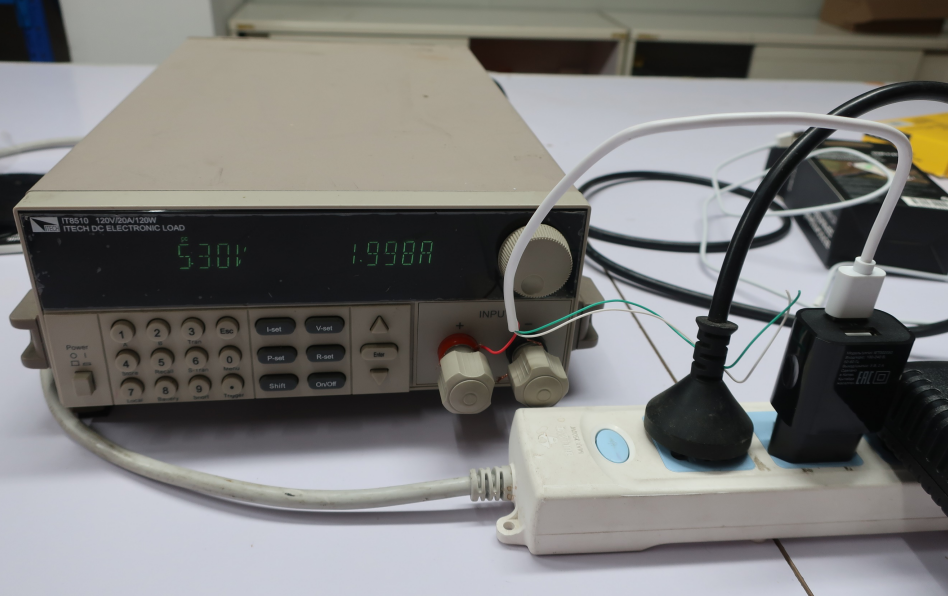

    Load 5.30V 1.998A 10.59W

    Image 36

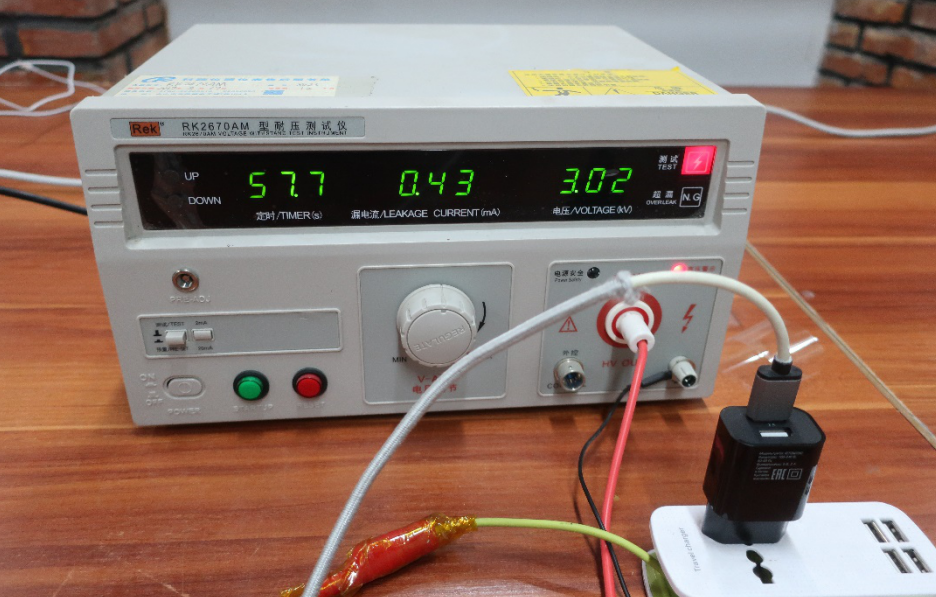

    Hi pot test 3000V 60S,PASS. High security.

    Image 37

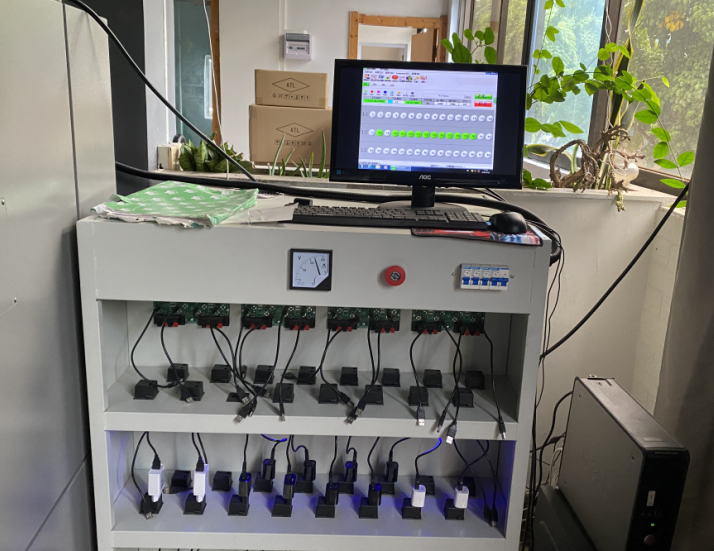

    Aging test: Work continuously for 4 hours under the load of 2A current, there is no under-voltage or under-current, over-voltage or over-current. After working for 4 hours, the surface temperature of the charger is about 48 degrees, and it is not hot .

    Image 38

    Advantage:

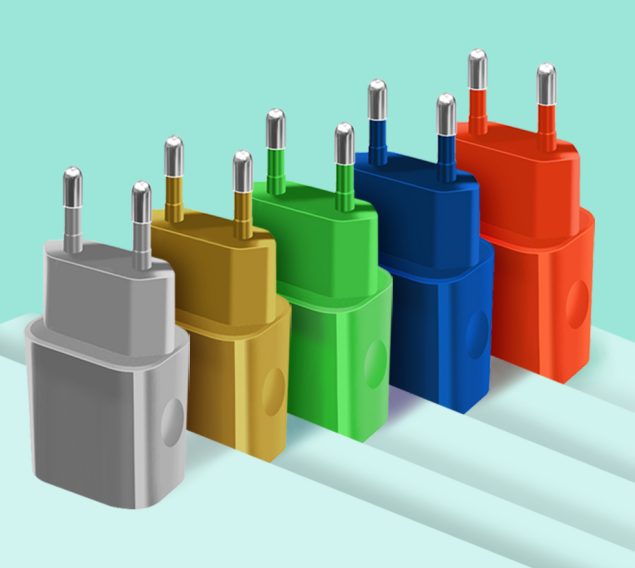

    1. A variety of colors can be selected, accept customizing any color you want.
    2. The price is favorable and economical.
    3. 2A 2USB smart shunt can be used at the same time without interference.
    4. CE certification quality is guaranteed.
