Disassembly test report:45W PD charger [MODEL:IET18CD]

Table of Contents
    Add a header to begin generating the table of contents
    Scroll to Top

    1.The appearance of the product.

    Image 56
    Image 57

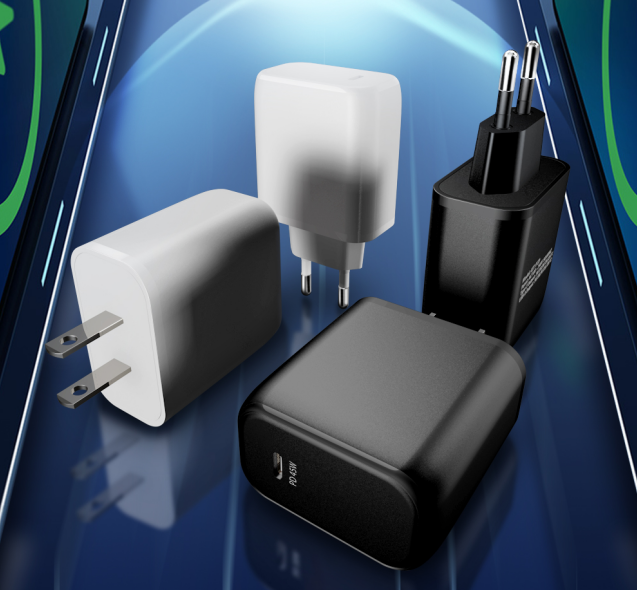

    These products are available in classic black and white.
    On the upper end of the charger, thin lighting is added, which is more noble and elegant.

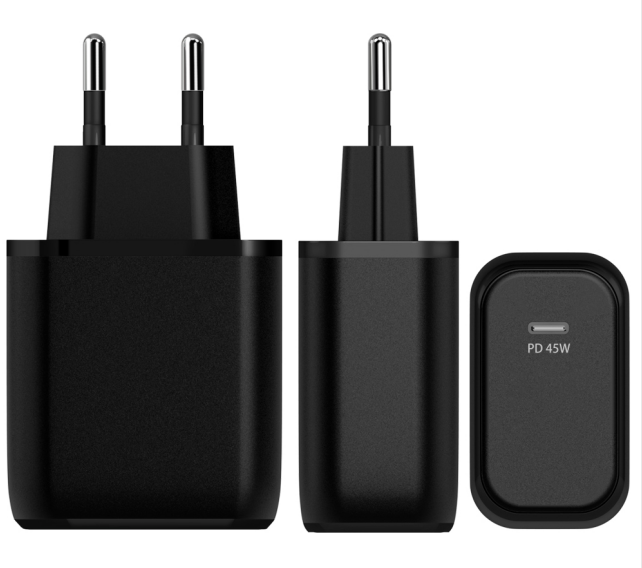

    The product adopts U-shaped shell design, which looks more compact.
    The smooth and blank surface is more suitable for customer customization.

    2.Specific parameters:

    Image 58

    Model: IET18CD
    input: AC100-240V50/6OHZ
    PDD: DC5.0V-3.0A or 9.0V2.77A
    PPS: 3.3-5.9V 3A or 3.3-11.0V 2.25A
    Material: ABS

    3.Volume and weight parameters

    Image 48

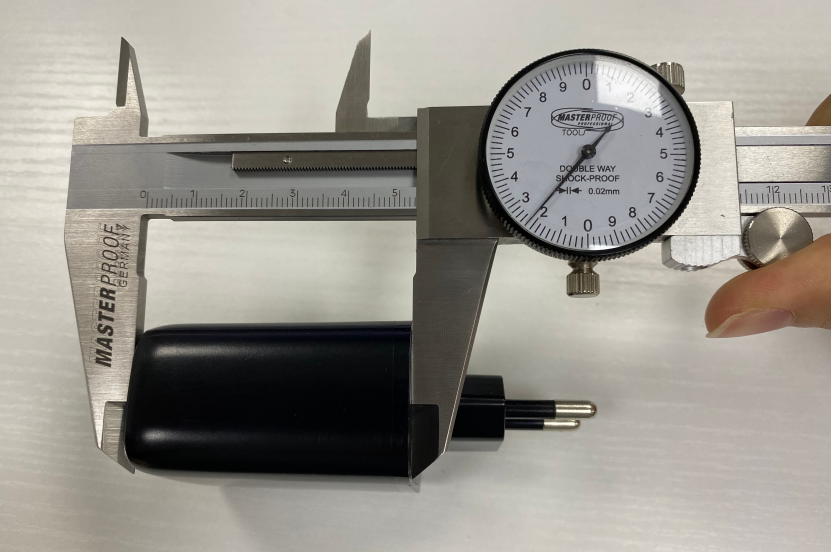

    Charger length :53.22MM

    Image 49

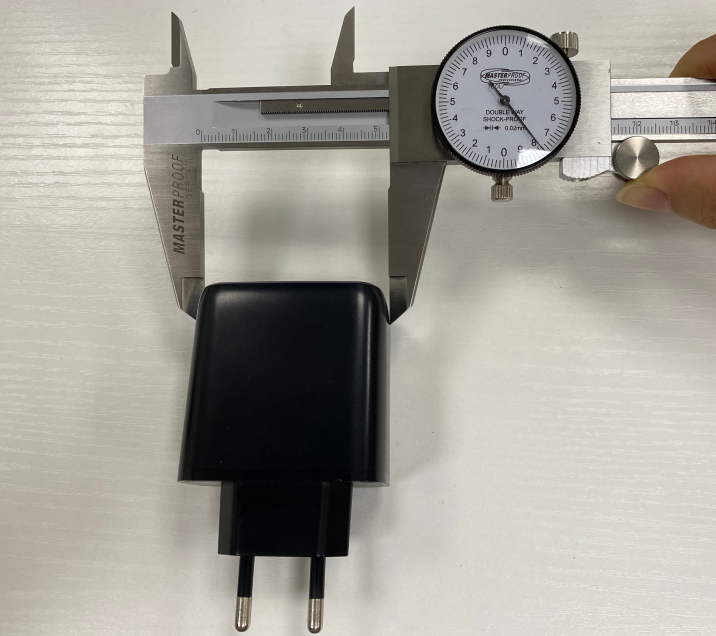

    Charger width:52.78 MM

    Image 50

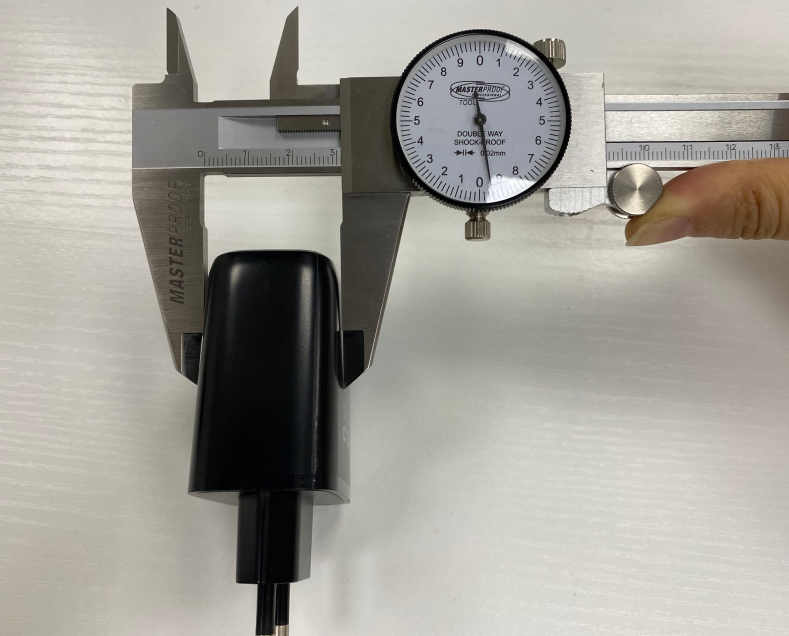

    Charger thickness:31.96MM

    The three-dimensional parameters of the charger are 53.22*52.78*31.96mm, the volume of the charger is about 89.77cm³, and the maximum output is 40W, and the power density is about 1.99W/cm³.

    Image 51

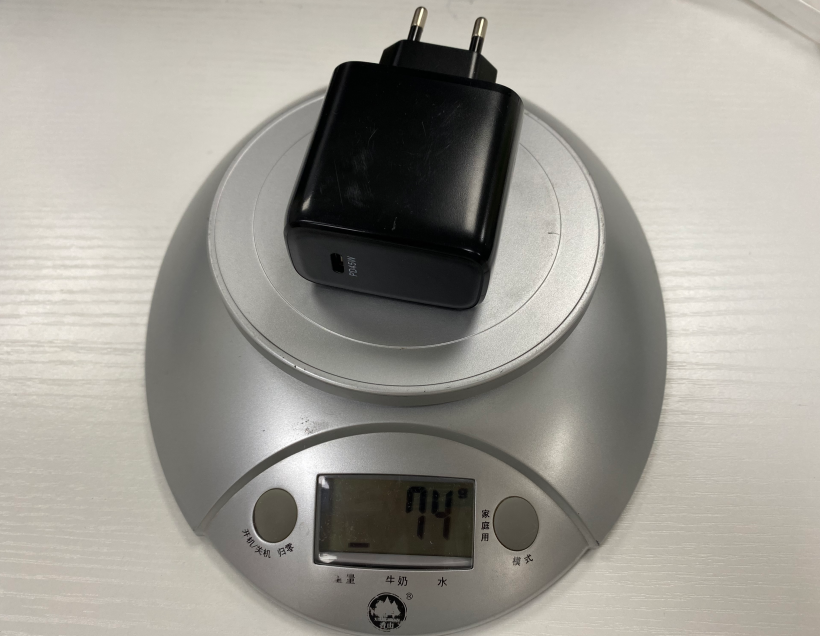

    Product net weight 74G

    Image 60
    Image 60

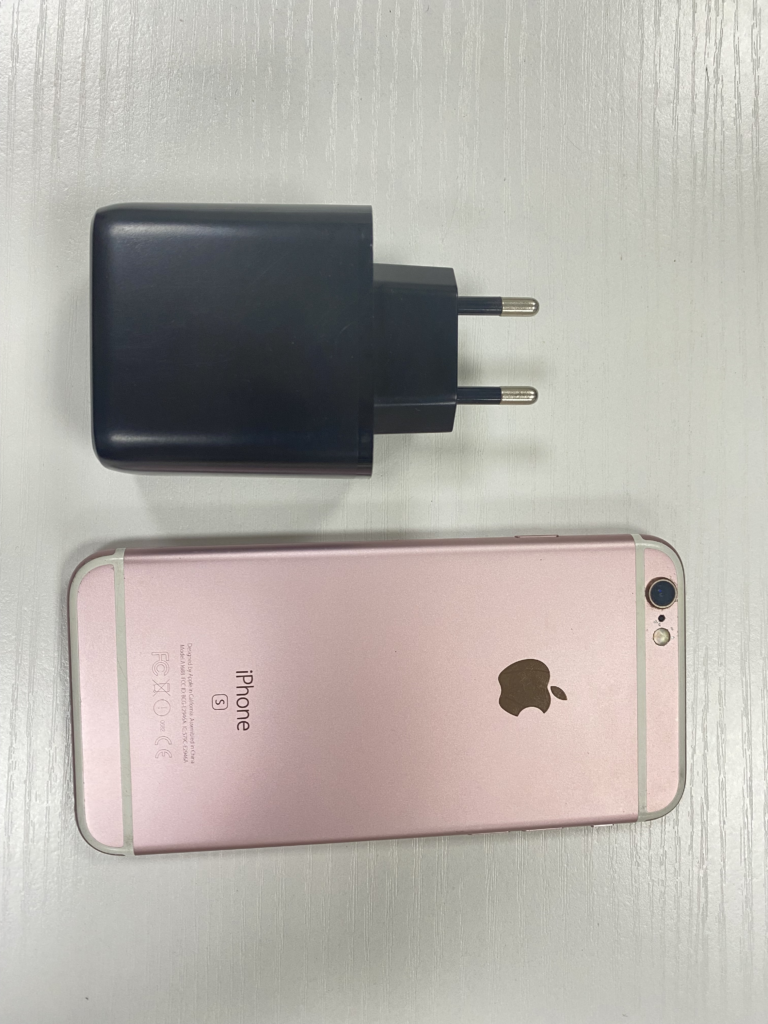

    Charger and iphone 6s mobile phone size comparison

    4. Product disassembly

    Image 52

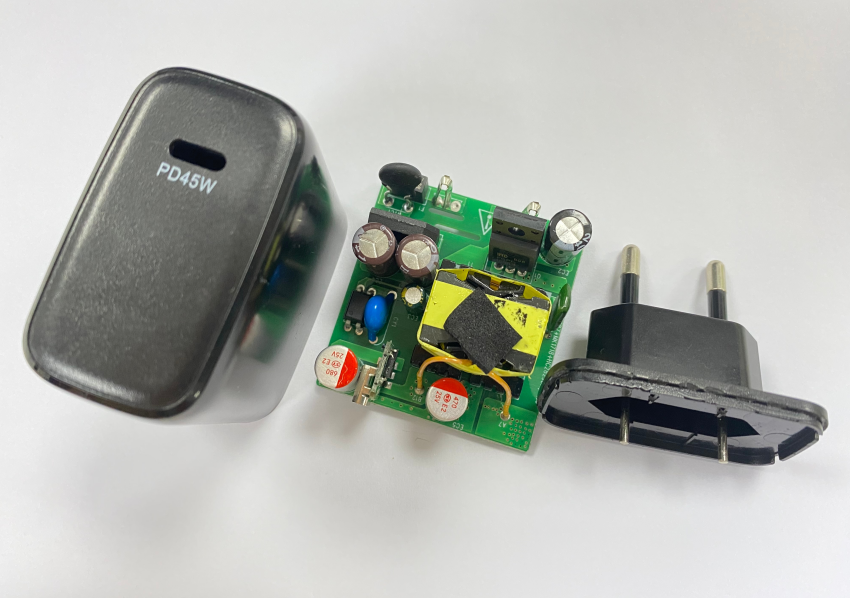

    Product structure disassembly

    Image 53

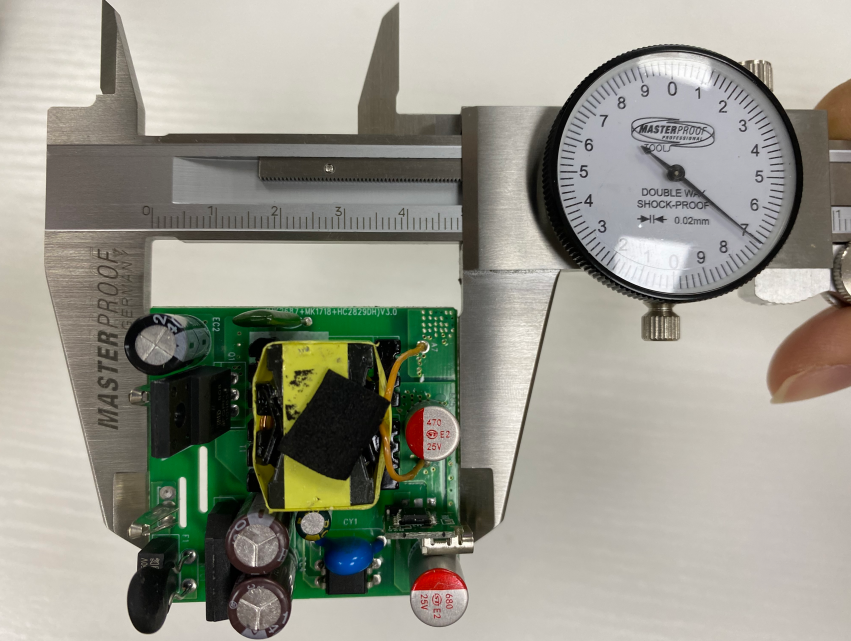

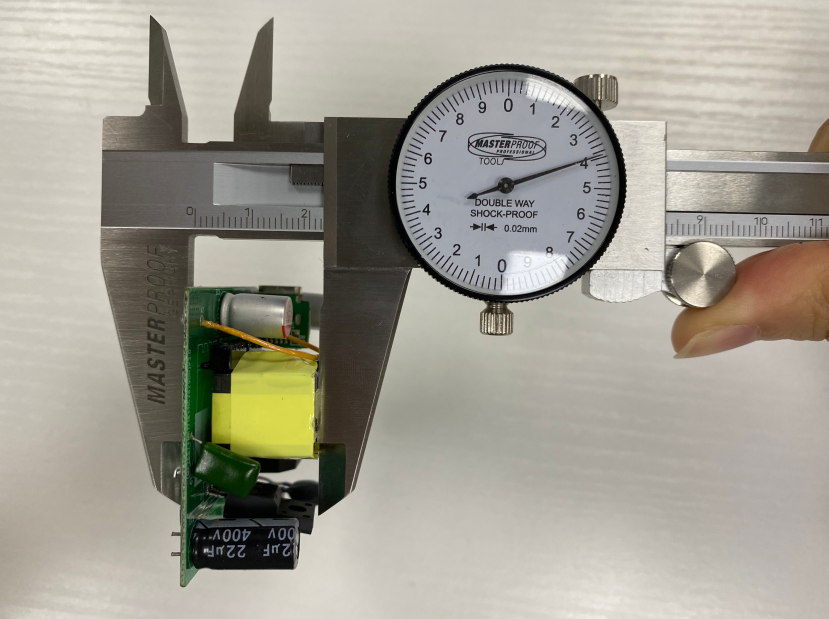

    PCB length 49.70mm

    Image 54

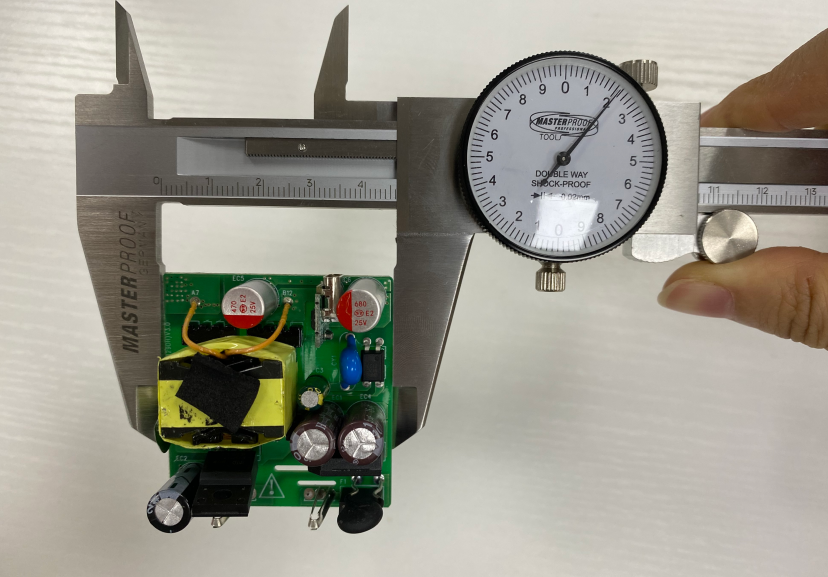

    PCB width 46.21mm

    Image 55

    PCB thickness 22.39mm

    5.Compatibility and functional testing

    Image 62

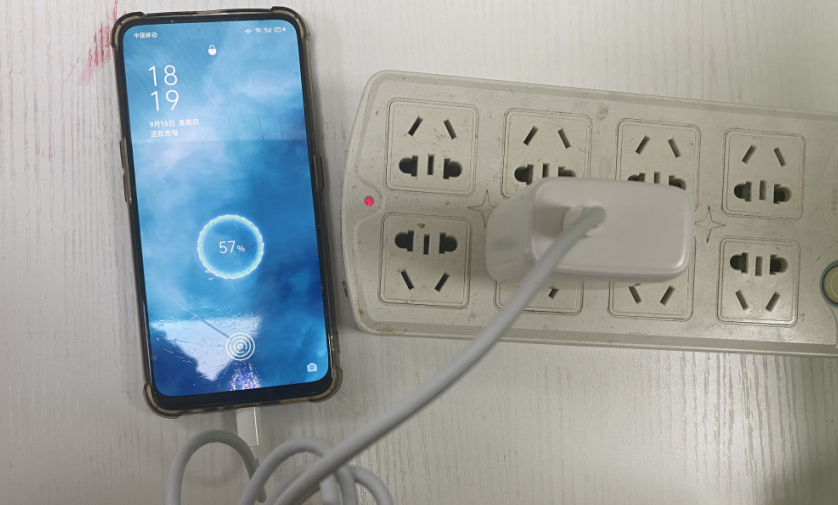

    Real machine charging test

    Image 61
    Image 63

    Aging test: Work continuously for 4 hours under the load of 3A current, there is no under-voltage or under-current, over-voltage or over-current. After working for 4 hours, the surface temperature of the charger is about 50 degrees, and it is not hot .

    Image 64
    Image 65
    Image 66

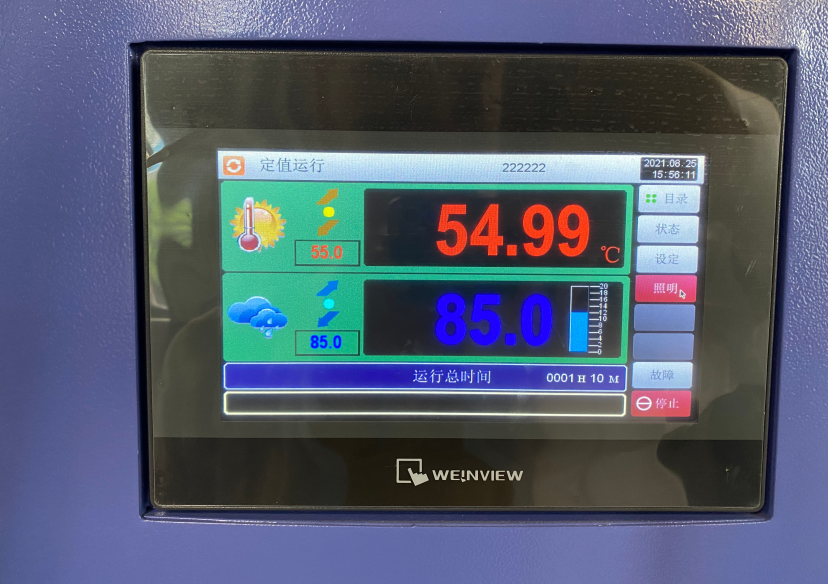

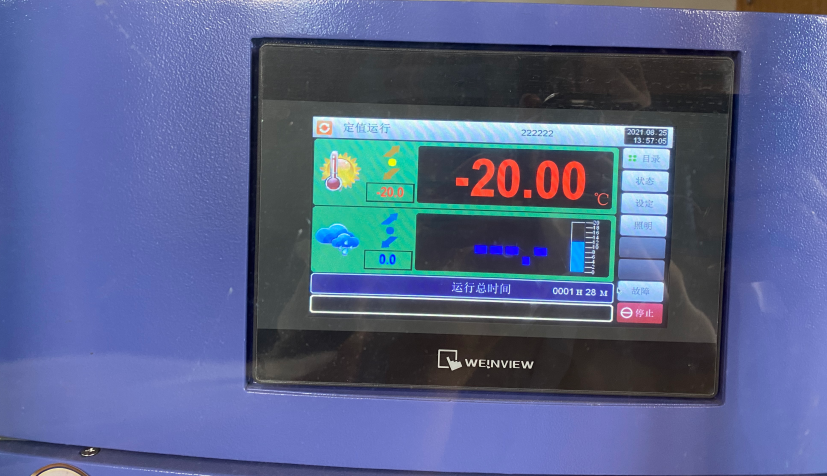

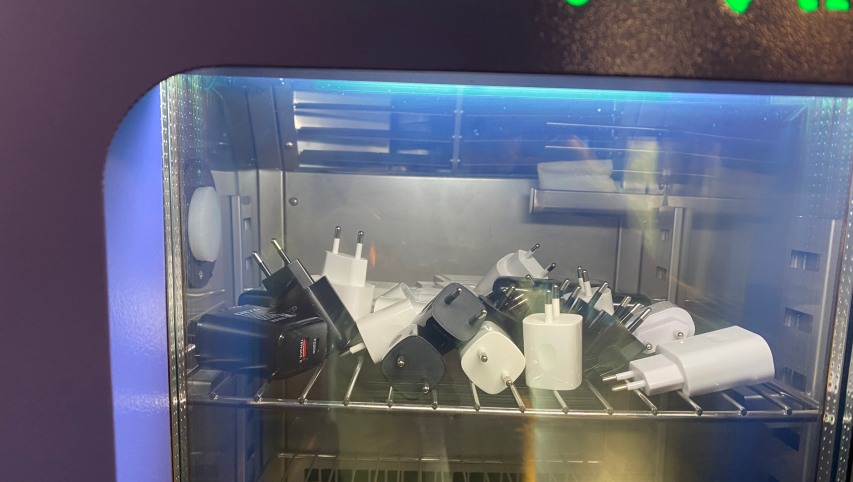

    Place it at a high temperature of 55 degrees and a low temperature of minus 20 degrees for two hours each. After taking it out, check that the product has not melted or cracked.

    Image 67

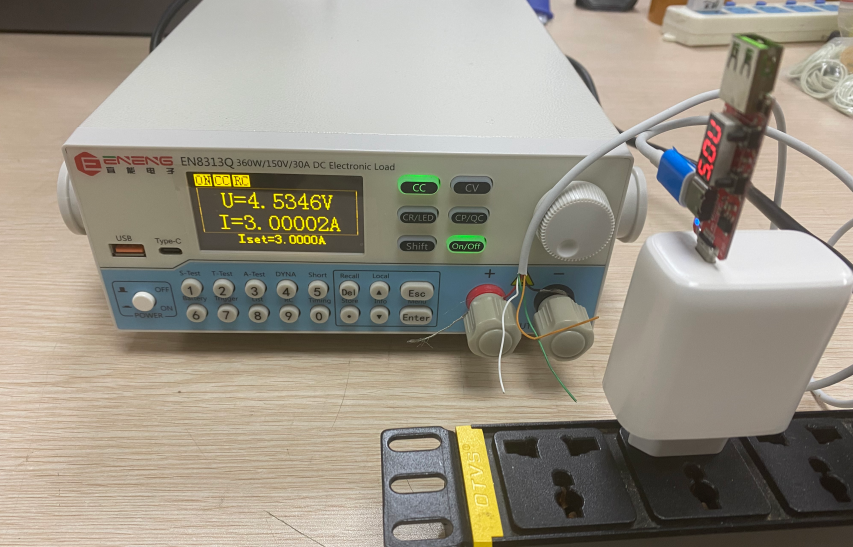

    The voltage is 4.5V, the current is 3A, the power is 13.5W, and the fast charge is turned on.

    Image 68

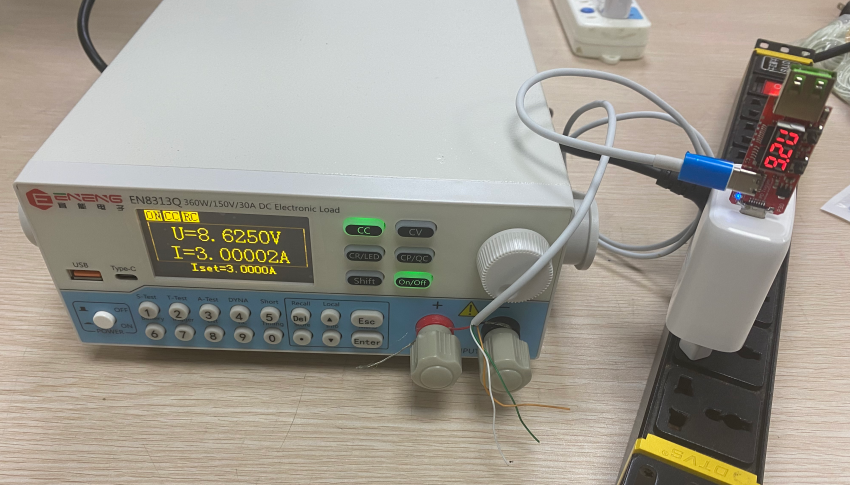

    The voltage is 8.6V, the current is 3A, the power is 25.8W, and the fast charge is turned on.

    Image 69

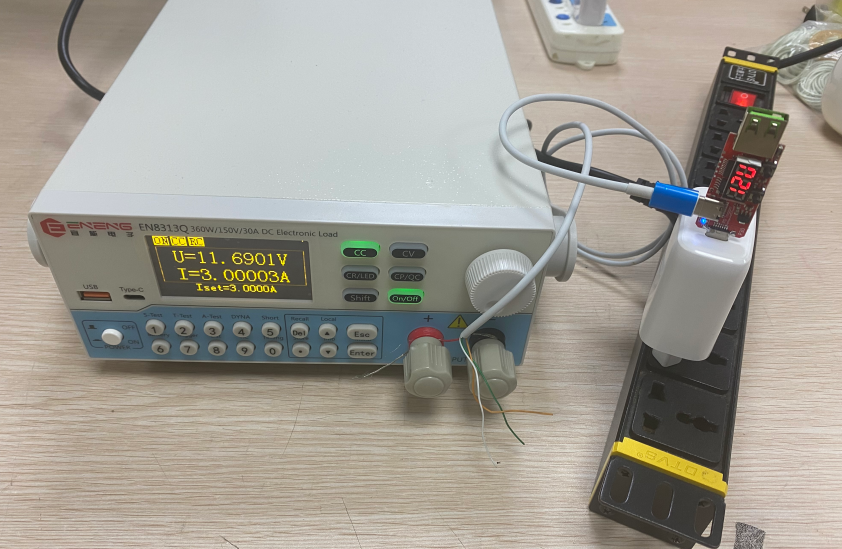

    The voltage is 11.69V, the current is 3A, the power is 35.07W, and the fast charge is turned on.

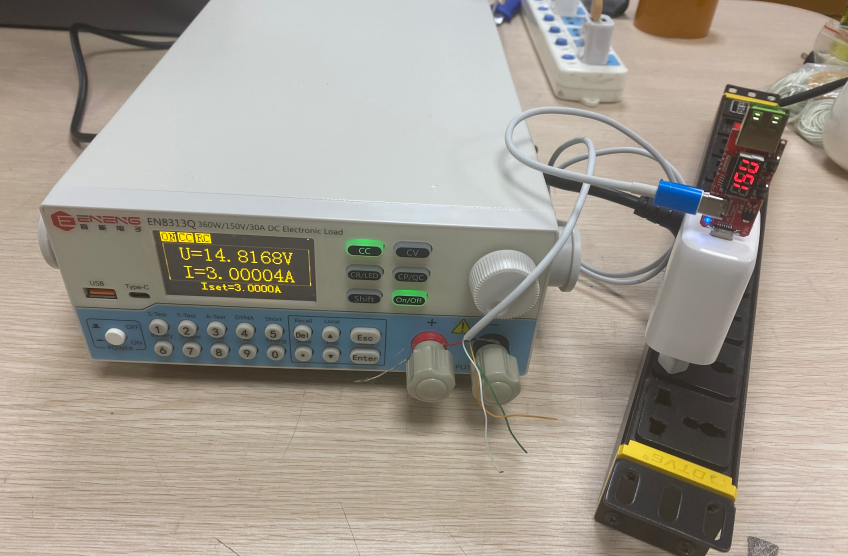

    Image 70

    The voltage is 14.82V, the current is 3A, the power is 44.46W, and the fast charge is turned on.

    Image 71

    The voltage is 20.1V, the current is 2.249A, the power is 45W, and the fast charge is turned on.
