Evaluation and dissection of 15W charger [MODEL:IET1CD01]

Today I will share with you a 3A charger that I like very much. The price is affordable and can be applied to all mobile phones. Let’s take a look at its appearance and performance test.

1.The appearance of the product

Image 72

Different designs are used on the front and back sides to make the charger look more unique. The shell is smooth and suitable for customer-defined content.

Image 73

High-quality ABS plastic, moderate in size, and smooth to the touch.

Image 74

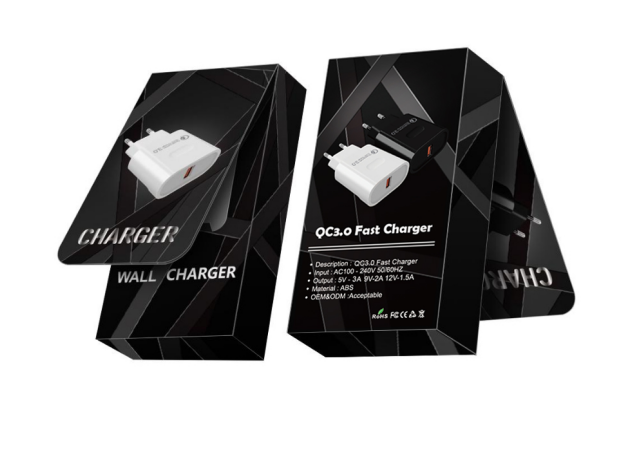

High-end gift box packaging is more suitable for retail.

3.Volume and weight parameters:

Image 75

Charger length:46.12MM

Image 76

Bottom charger width:44.80MM

Image 77

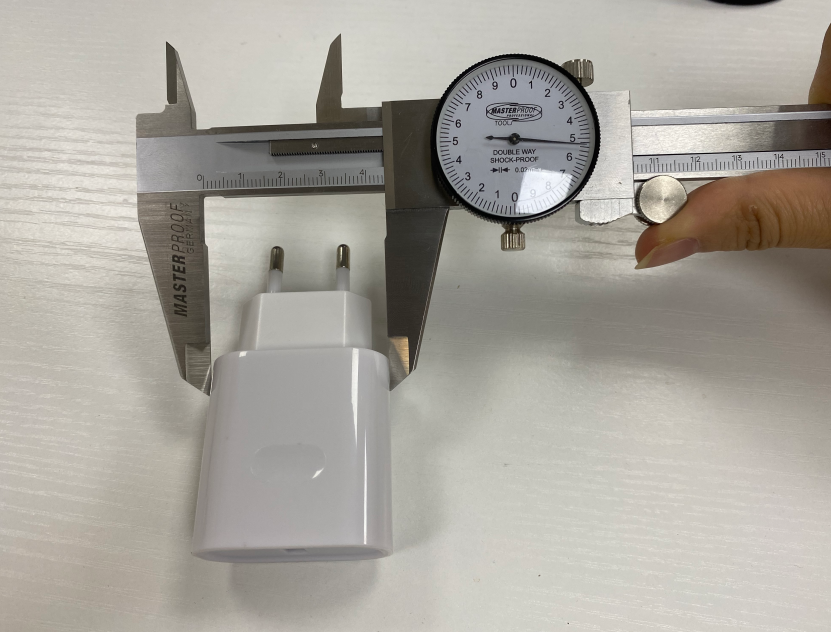

Top of Charger width:44.52MM

Image 78

Charger thickness:24.55mm

The three-dimensional parameters of the charger are 46.12*44.52*24.55mm, the volume of the charger is about 50.4cm³, and the maximum output is 15W, and the power density is about 0.30W/cm³.

Image 82

Product net weight 39G

Image 83

List of internal dismantling structures

Image 79

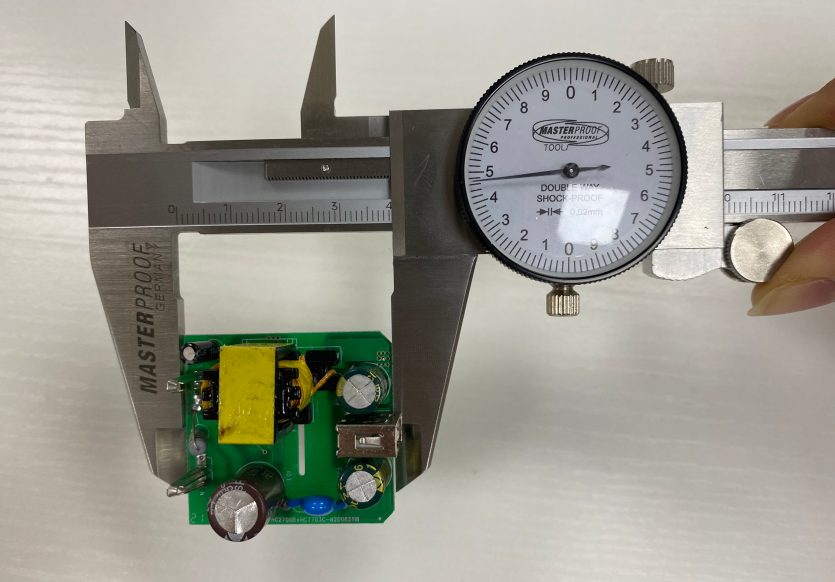

PCB length:39.48MM

Image 80

PCB width:36.26MM

Image 81

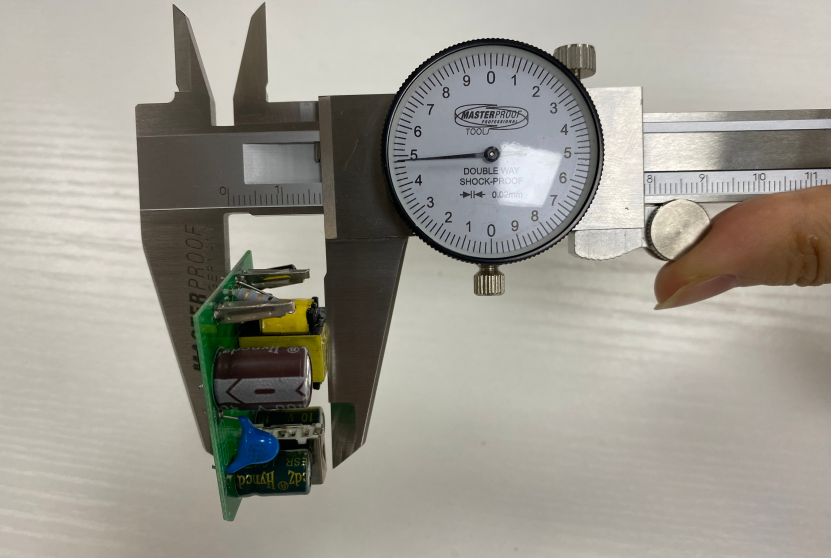

PCB thickness:18.48MM

5.Compatibility and functional testing

Image 84

Real machine charging test

Image 85
Image 87

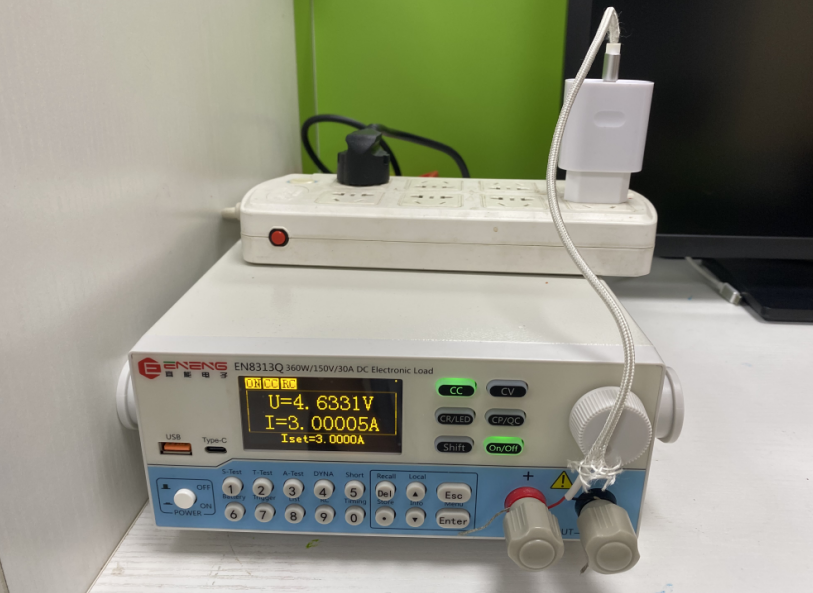

The voltage is 4.633V, the current is 3A, the power is 13.899W,

Image 88
Image 90
Image 89

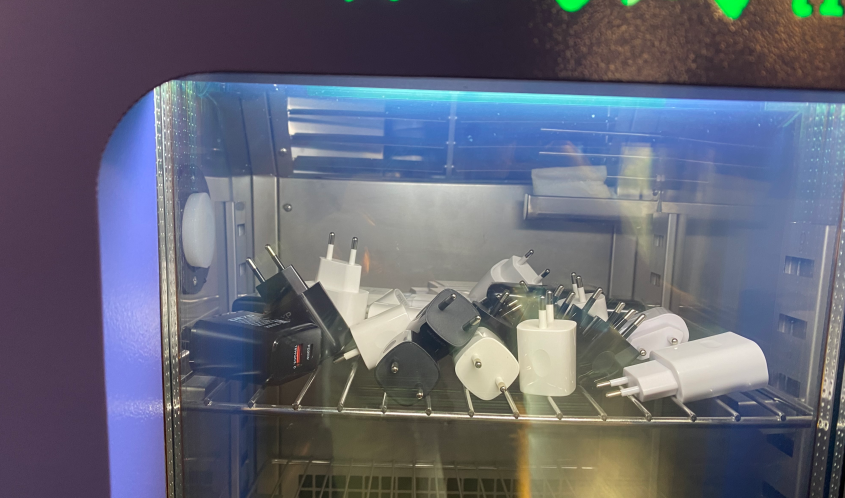

Place it at a high temperature of 55 degrees and a low temperature of minus 20 degrees for two hours each. After taking it out, check that the product has not melted or cracked.

Image 91
Image 92

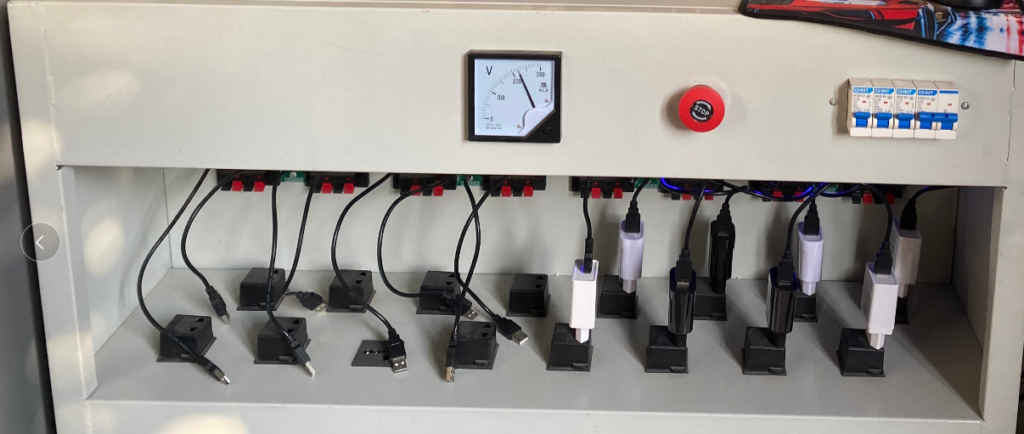

Aging test: Work continuously for 4 hours under the load of 3A current, there is no under-voltage or under-current, over-voltage or over-current. After working for 4 hours, the surface temperature of the charger is about 50 degrees, and it is not hot .

Evaluation summary
In terms of appearance, this charger has a very unique design, which is about the same size as Apple’s 20W PD charger. Performance supports 3A charging, which is basically suitable for all mobile phones. The size of the product is also relatively small, not heavy, and easy to carry. For small partners who usually travel a lot, using this charger as a spare accessory is a very good choice.
